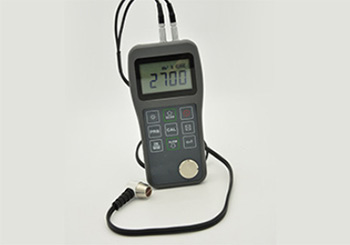

9999M/S 300MM Steel Plate Ultrasonic Thickness Gauge
Ultrasonic Thickness Gauge
Ultrasonic thickness gauge is based on the principle of ultrasonic pulse reflection for thickness measurement. When the ultrasonic pulse emitted by the probe reaches the material interface through the measured object, the pulse is reflected back to the probe. Measure the thickness of the material. This principle can be used to measure all kinds of materials that can make ultrasonic waves propagate inside them at a constant speed.
This thickness gauge adopts the pulse reflection ultrasonic measurement principle, which is suitable for the measurement of the thickness of various materials whose ultrasonic can propagate at a constant speed and can be reflected from its back. This instrument can accurately measure various plates and various processed parts. It can be widely used in various fields such as petroleum, chemical industry, metallurgy, shipbuilding, aviation and aerospace.
Features
Ultra-light and slim body for easy one-handed operation
Two-point calibration function makes the measured value more accurate
Unique blue background light, clearly visible in various environments
Low power consumption, two dry batteries can be used for more than 200 hours
Suitable for measuring all sound conducting materials, such as steel, iron, plastic, ceramic, plexiglass, etc.
Technical Parameters
| Display method | High-contrast segment code LCD display, high-brightness EL backlight |
| Measuring range | 0.75~300MM (in steel), metric and imperial system can be selected |
| Sound speed range | 1000~9999 M/S |
| Resolution | 0.1MM |
| Indication accuracy | ±(0.5%H+0.04) MM H is the actual thickness of the measured object |
| Measurement period | 4 times/sec in single point measurement, 10 times/sec in scan mode |
| storage capacity | Can store 20 groups (each group of up to 99 measured values) thickness measurement data |
| Operating Voltage | 3V (2 AA size alkaline batteries connected in series) |
| Continuous working time | About 100 hours (without backlight) |
| Dimensions | 150X74X32 MM |
| Total Weight | 245G |
Product details
 | ●Suitable for measuring the thickness of metals (such as steel, cast iron, aluminum, copper, etc.), plastics, ceramics, glass, glass fibers and any other good conductors of ultrasound;
●It can be equipped with a variety of dual crystal probes with different frequencies and different chip sizes;
●It has the functions of probe zero calibration and two-point calibration, which can automatically correct the system error |
●The known thickness can measure the speed of sound in reverse to improve the measurement accuracy;
●With the function of coupling status prompt;
●EL backlight display, convenient to use in dimly lit environments; |  |
 | ●Remaining power indicator function, which can display the remaining battery power in real time;
●Power saving functions such as automatic sleep and automatic shutdown
●Small, portable, highly reliable, suitable for harsh operating environments, resistant to vibration, shock and electromagnetic
interference; |
Working principle
The thickness measurement of this ultrasonic thickness gauge is that the ultrasonic pulse generated by the probe passes through the couplant to reach the object under test. Part of the ultrasonic signal is reflected by the bottom surface of the object. The probe receives the echo reflected by the bottom surface of the object, and accurately calculates the ultrasonic wave. Round trip time, and calculate the thickness value by the following formula, and then display the calculation result.
